High-effect Thermal Energy Water Cooling Ribbon for Containerized
ESS
Liquid-cooled heat dissipation allows precise temperature
management of each cell through convective heat exchange of
coolant.The basic components of liquid-cooled system include:
liquid-cooled plate, liquid-cooled unit (heater option),
liquid-cooled pipeline (including temperature sensor, valve), high
and low pressure wiring harness; coolant (ethylene glycol aqueous
solution), etc.

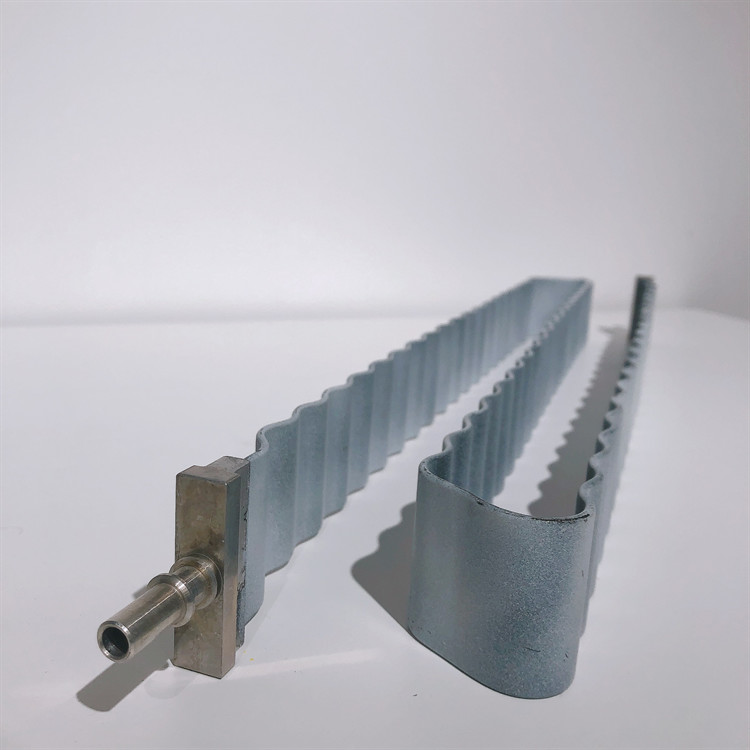

| Item | Aluminum snake cooling tube for EV/ESS battery |
| Specification | According to your module |
| Processing | Extrusion, welding, brazing, coating.. |
| Accessories package | Quick connector, water line fitting, water distributor, manifold,
inlet, outlet etc. |
| Mold: | Extrusion, Waving shape, fixture tooling |
We specilized in:
1) Stamped type water cooling plate for prismatic cells / battery
pack.
2) Extruded snake tube for cylindrical cells, such as 21700, 18650,
3270, 4680, 4695 big cell.
3) Roll bonded cooling plate
4) Machined cold plate
5) Sandwich structure cold plate
Our Advantages:
1. Tooling development — we do it in house, so we can make initial
testing prompt and accurate.
2. Making all kinds of heat exchangers — we can do customized
shape, to make the parts fit into different packs.
3. Assistance in parts design — we have experienced engineer team,
they can provide professional suggestions regarding feasibility of
carrying out new designs.
4. One station service — we can do heat exchangers, as well as its
related insulation and silicon pad. So client can get integrated
solution.
Test Ability:
Chemical Composition Test | YES |
Pysical Test & Optics Test | YES |
Roughness Test & Hardness Test | YES |
Elongation Test | YES |
Salt Spray Test | YES |
Burst Test | YES |
Nitrogen & Helium Test | YES |
Flow Resistance Test | YES. Inside &outside corrosion test |
Voltage Test | YES |
Under Water Test | YES. Check the leakage for welding |
Detail Products
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this
industry.
Q: What method of processing technology?
A: We have brazing line, stamping line, extrusion line, and roll
boned process line. Also CNC centre is available.
Q: If we don't have design, can you assist in design?
A: Yes, we can! We have a strong and experienced design team. Flow
path design, thermal simulation, mechanical simulation and design
optimation are support. Kindly share with us your detail project,
service8@trumony.com, we'd love to do DFM for you.
Q: How fast you can make prototype?
A: About 3~5wks. The precise lead time will depends on your design
and producing process
